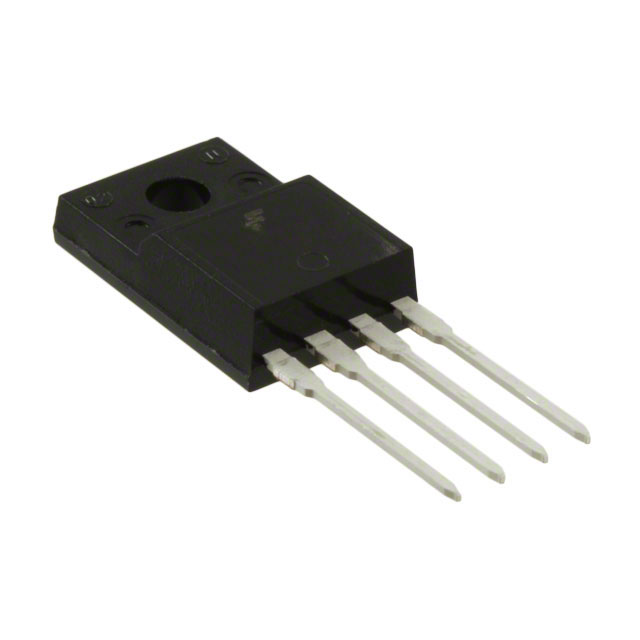

KA78R15CTU
IC REG LINEAR 15V 1A TO220F-4LManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220F-4L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 Full Pack |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220F-4L |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 15V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.5V @ 1A |
| Protection Features | Over Current, Over Temperature, Over Voltage, Short Circuit |
