KA278R12CYDTU
IC REG LINEAR 12V 2A TO220F-4LManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

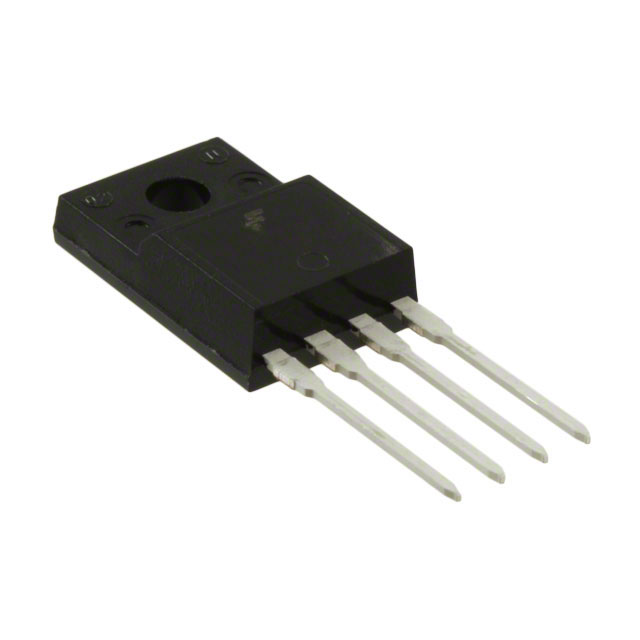

The onsemi KA278R12CYDTU is a positive fixed 12V linear voltage regulator with a 2A output capability. This component, housed in a TO-220F-4L (Forming) package, offers robust protection features including over current, over temperature, over voltage, and short circuit protection. With a maximum input voltage of 35V and a typical quiescent current of 10mA, it is suitable for applications requiring stable voltage regulation. The device exhibits a dropout voltage of 0.5V at a 2A load. Its through-hole mounting type and internal circuitry make it a reliable choice for various power management applications across industries such as consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 Full Pack, Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 2A |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220F-4L (Forming) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.5V @ 2A |
| Protection Features | Over Current, Over Temperature, Over Voltage, Short Circuit |
