FAN2559MP15X
IC REG LINEAR 1.5V 180MA 6MLPManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

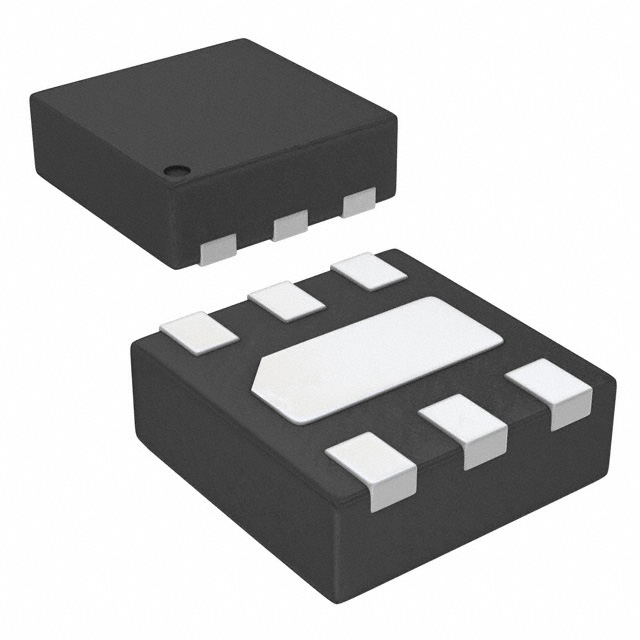

The onsemi FAN2559MP15X is a positive fixed output linear voltage regulator IC designed for applications requiring stable power. This device delivers 180mA output current with a fixed 1.5V output voltage. It features an enable pin for control and a power good signal for monitoring output status. Protection features include over current and over temperature shutdown. The FAN2559MP15X is housed in a compact 6-DFN (2x2) package and is supplied on tape and reel. Its low quiescent current of 150 µA and high power supply rejection ratio (PSRR) of 50dB at 100kHz make it suitable for portable electronics and battery-powered devices. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 180mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-DFN (2x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable, Power Good |
| PSRR | 50dB (100kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
