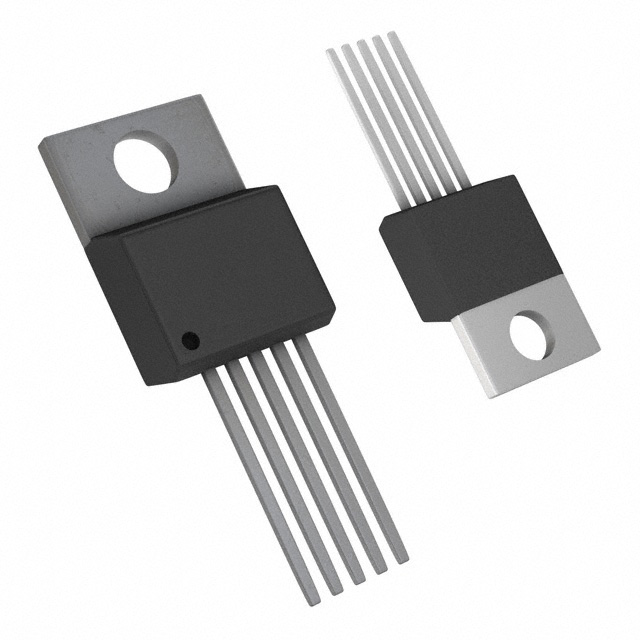

FAN1582T
IC REG LINEAR POS ADJ 3A TO220-5Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi FAN1582T is a positive adjustable linear voltage regulator. This device offers a robust 3A output current capability with an adjustable output voltage range from 1.25V to 5.7V. It features over-current and over-temperature protection for enhanced reliability. The quiescent current (Iq) is 6 mA, and it exhibits a power supply rejection ratio (PSRR) of 80dB at 120Hz. The FAN1582T has a maximum input voltage of 7V and a maximum dropout voltage of 1.18V at its full 3A output. It is supplied in a TO-220-5 package, designed for through-hole mounting. This component is suitable for applications in power supplies, industrial automation, and consumer electronics. The operating temperature range is -65°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -65°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 5.7V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 80dB (120Hz) |
| Voltage Dropout (Max) | 1.18V @ 3A |
| Protection Features | Over Current, Over Temperature |
