FAN1582D15X
IC REG LINEAR 1.5V 3A TO252-4LManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
onsemi FAN1582D15X is a positive fixed output linear voltage regulator IC. This component delivers a stable 1.5V output with a maximum output current of 3A. Designed for surface mount applications, it is supplied in a TO-252 (DPAK) package. The FAN1582D15X features over-current and over-temperature protection, along with a Power Supply Rejection Ratio (PSRR) of 80dB at 120Hz. The maximum input voltage is 7V, and the dropout voltage is rated at 1.18V at 3A. This device finds application in power management solutions for consumer electronics, industrial automation, and telecommunications infrastructure. It operates within an extended temperature range of -65°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

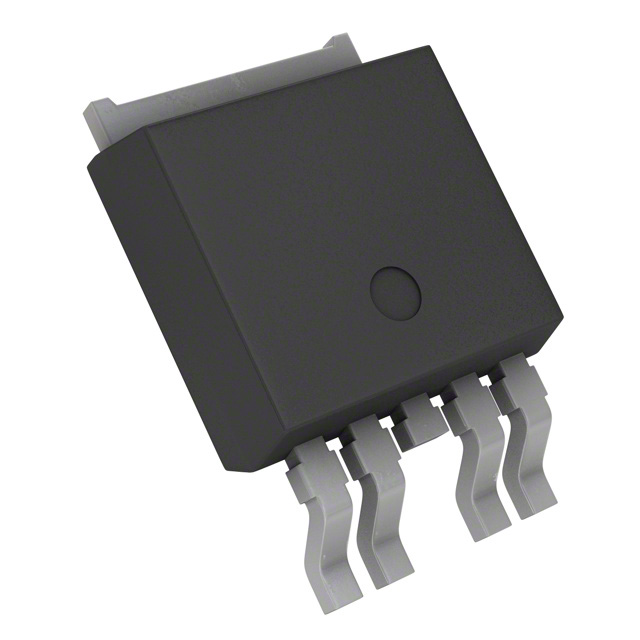

| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -65°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252 (DPAK) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | - |
| PSRR | 80dB (120Hz) |
| Voltage Dropout (Max) | 1.18V @ 3A |
| Protection Features | Over Current, Over Temperature |
