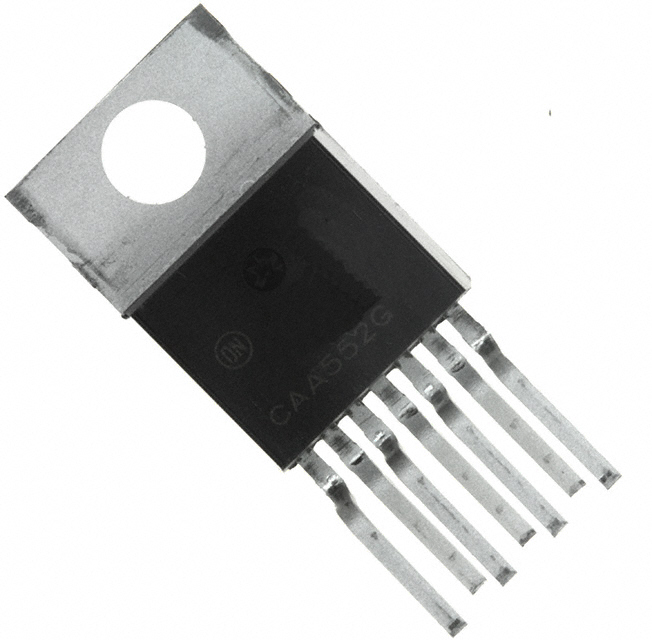

CS8371ETVA7G
IC REG LIN 8V/5V 1A/250MA TO220Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi CS8371ETVA7G is a dual-output positive fixed linear voltage regulator IC. This component features independent regulation of 8V at up to 1A and 5V at up to 250mA. Designed for through-hole mounting in a TO-220-7 package, it offers robust protection against over-temperature, over-voltage, and short circuits. The device boasts a high Power Supply Rejection Ratio (PSRR) ranging from 90dB to 67dB across a frequency band of 120Hz to 20kHz, making it suitable for noise-sensitive applications. Quiescent current is rated at 7mA, with a maximum supply current of 30mA. An enable feature is included for enhanced control. This regulator is ideal for automotive and industrial power supply applications requiring stable, low-noise voltage outputs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A, 250mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 2 |
| Supplier Device Package | TO-220-7 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 8V, 5V |
| Control Features | Enable |
| PSRR | 90dB ~ 67dB (120Hz ~ 20kHz) |
| Voltage Dropout (Max) | 1.5V @ 1A, 2.5V @ 250mA |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Current - Supply (Max) | 30 mA |
