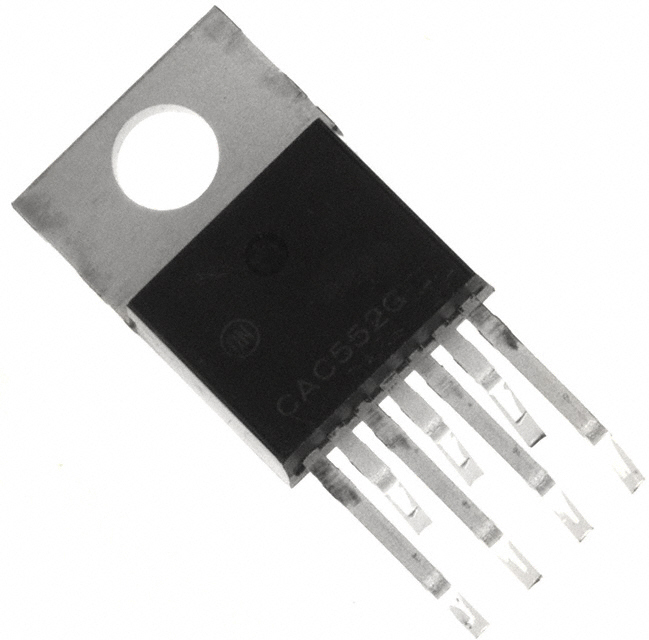

CS8151YTHA7G
IC REG LINEAR 5V 100MA TO220-7Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
onsemi's CS8151YTHA7G is a positive fixed 5V linear voltage regulator designed for demanding applications. This component delivers a stable 100mA output current with a maximum dropout voltage of 0.6V at 100mA, ensuring efficient power regulation. Featuring over-temperature, over-voltage, and short-circuit protection, it provides robust operational reliability. The internal circuitry includes reset, wake-up, and watchdog functions, enhancing system control. With a high Power Supply Rejection Ratio (PSRR) of 75dB at 120Hz and an input voltage capability up to 26V, this device is suitable for automotive, industrial, and consumer electronics sectors. The TO-220-7 package with formed leads allows for convenient through-hole mounting. Operating within a temperature range of -40°C to 125°C, the CS8151YTHA7G is supplied in a tube.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-7 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Reset, Wake-Up, Watchdog |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
