CAT6243-ADJCMT5T

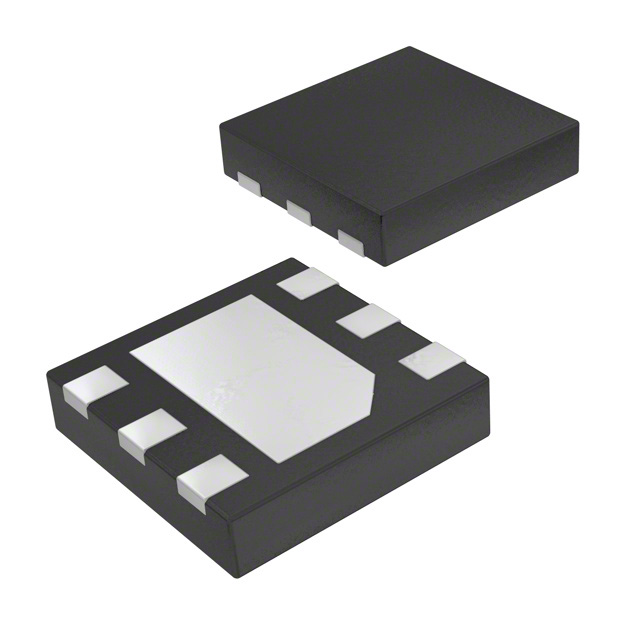

IC REG LINEAR POS ADJ 1A 6WDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi CAT6243-ADJCMT5T is a positive adjustable linear voltage regulator IC designed for high-performance applications. This component delivers a stable output current of 1A with a low dropout voltage of 0.275V at 1A. Featuring an adjustable output from 0.8V to 5V and a maximum input voltage of 5V, it offers excellent power supply rejection ratio (PSRR) ranging from 54dB to 42dB across a 1kHz to 20kHz frequency band.
The CAT6243-ADJCMT5T includes essential protection features such as over current, over temperature, and under voltage lockout (UVLO). With an enable control feature and a quiescent current of 100 µA, it is suitable for power-sensitive designs. The device is housed in a compact 6-WDFN (3x3) exposed pad package, ensuring efficient thermal performance for surface mount applications. This regulator is commonly utilized in consumer electronics, industrial automation, and communication systems where precise and reliable voltage regulation is critical. The CAT6243-ADJCMT5T is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WDFN (3x3) |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable |
| PSRR | 54dB ~ 42dB (1kHz ~ 20kHz) |
| Voltage Dropout (Max) | 0.275V @ 1A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 250 µA |
