CAT6219180VP5GT4
IC REG LINEAR 1.8V 500MA 6TDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

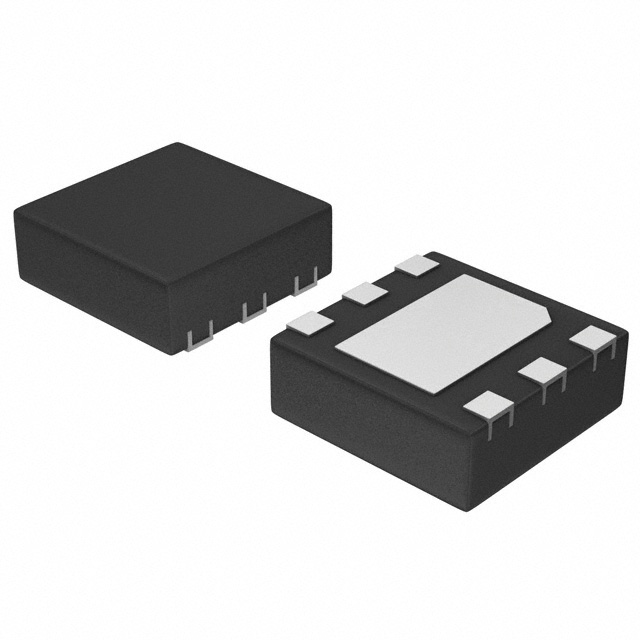

The onsemi CAT6219180VP5GT4 is a fixed output linear voltage regulator IC. This positive voltage regulator provides a stable 1.8V output with a maximum current capability of 500mA. It features an enable pin for control and operates with a quiescent current of 75 µA and a supply current of 90 µA. The device boasts excellent power supply rejection ratio (PSRR) performance, ranging from 64dB at 1kHz to 54dB at 20kHz. Protection features include over current, over temperature, and under voltage lockout (UVLO). The input voltage range extends up to 5.5V, with a dropout voltage of 0.5V at 500mA. The CAT6219180VP5GT4 is supplied in a compact 6-TDFN (2x2) package, suitable for surface mounting. Its specifications make it well-suited for applications in consumer electronics, industrial control, and battery-powered devices. This component is delivered on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 75 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-TDFN (2x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 64dB ~ 54dB (1kHz ~ 20kHz) |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 90 µA |
