QTLP670C4TR
LED GREEN CLEAR 2PLCC SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

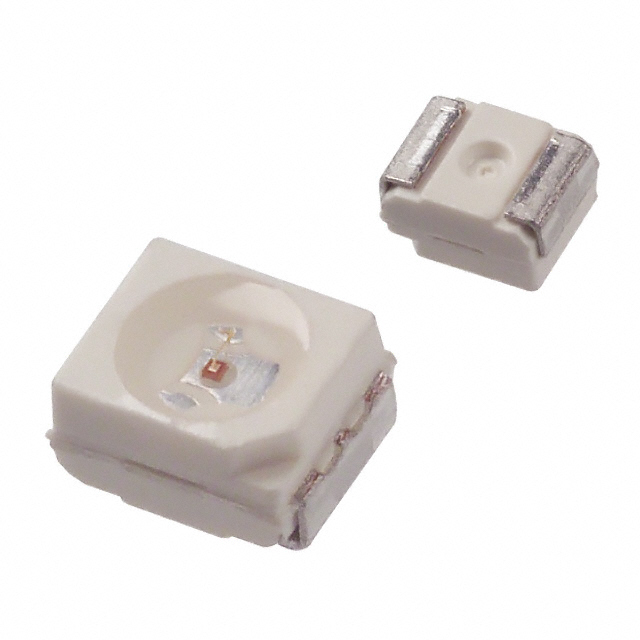

onsemi QTLP670C4TR is a green 570nm LED indication component designed for surface mount applications. This discrete LED features a 2-PLCC package with a clear, colorless lens measuring 2.40mm in diameter and a round with flat top lens style. The component operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a millicandela rating of 25mcd. Its dominant wavelength is 570nm, with a peak wavelength of 565nm, and a wide viewing angle of 120°. The dimensions of the onsemi QTLP670C4TR are 3.20mm L x 2.80mm W, with a maximum height of 2.10mm. This component is supplied in Tape & Reel (TR) packaging and finds application in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
