QTLP650D4TR
LED GREEN DIFFUSED 1206 SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

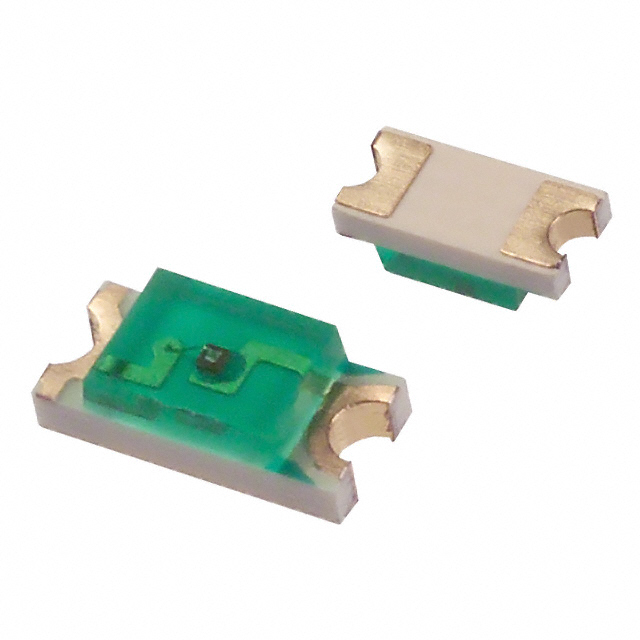

The onsemi QTLP650D4TR is a Surface Mount Green LED, part of the LED Indication - Discrete category. This component features a diffused lens style with a flat top, measuring 2.00mm x 1.60mm, and is housed in a 1206 (3216 Metric) package. It operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a dominant wavelength of 570nm and a peak wavelength of 565nm. The millicandela rating is 8mcd with a wide viewing angle of 160°. This component is supplied on tape and reel. Applications include general indication in consumer electronics, industrial control systems, and automotive lighting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
