QTLP650D3TR
LED YELLOW DIFFUSED 1206 SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

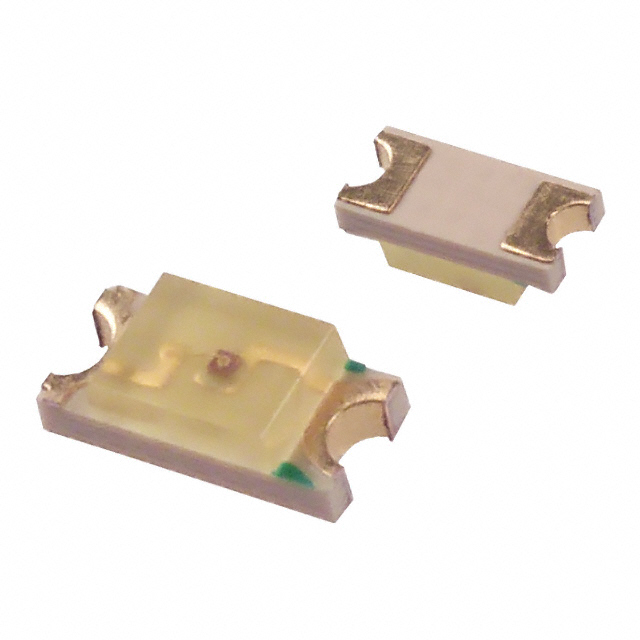

The onsemi QTLP650D3TR is a yellow diffused LED, designed for surface mount applications in a 1206 (3216 Metric) package. This discrete component emits light at a dominant wavelength of 590nm with a peak wavelength of 585nm. It features a forward voltage of 2V and a test current of 20mA, yielding a millicandela rating of 8mcd. The diffused lens has a flat-top rectangular style, measuring 2.00mm x 1.60mm, with a viewing angle of 160°. This component finds application in various industrial sectors requiring clear visual indication. It is supplied on tape and reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
