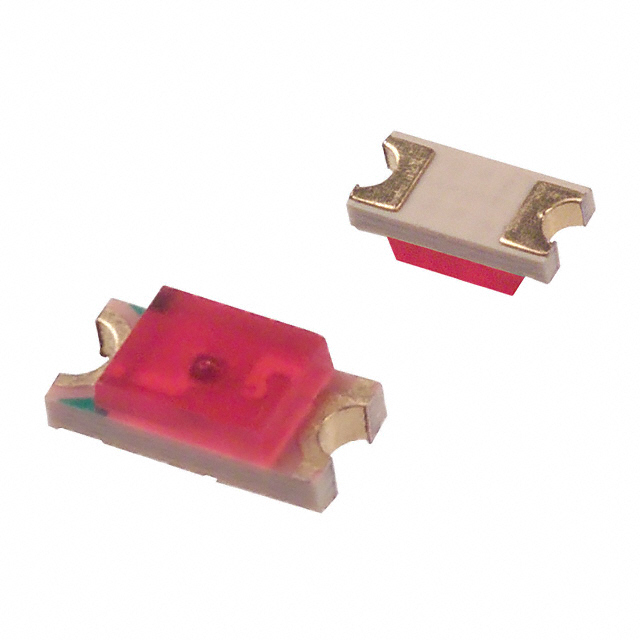

QTLP650D2TR
LED RED DIFFUSED 1206 SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More
The onsemi QTLP650D2TR is a red diffused LED with a 630nm dominant wavelength, packaged in a compact 1206 (3216 Metric) SMD footprint. This discrete indicator component features a forward voltage of 2V (typical) and a forward current of 20mA, delivering 8mcd luminous intensity with a wide 160° viewing angle. Its diffused lens provides a consistent light output across its 3.20mm x 1.60mm dimensions and 1.30mm maximum height. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for visual status indication. The QTLP650D2TR is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
