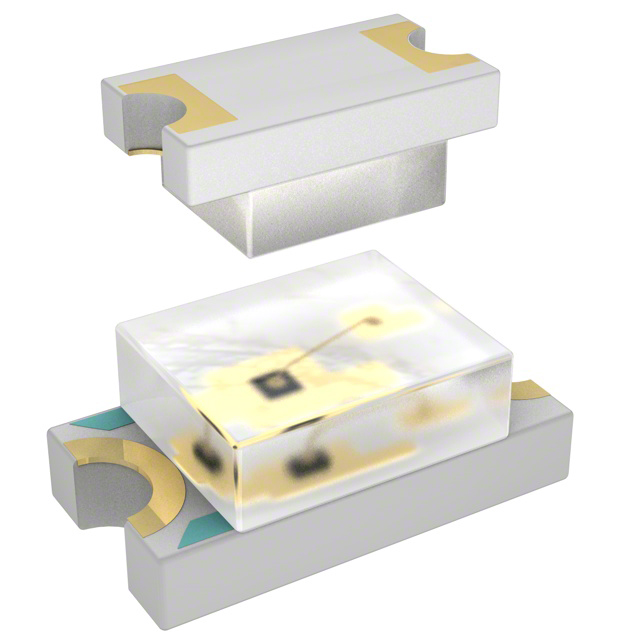

QTLP650C4TR
LED GREEN CLEAR 1206 SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More
onsemi QTLP650C4TR is a green, 570nm wavelength LED designed for surface mount applications. This discrete component features a 2.1V forward voltage and a 10mcd millicandela rating at a test current of 20mA. The clear, colorless lens has a rectangular, flat-top style measuring 2.00mm x 1.60mm. Housed in a 1206 (3216 Metric) SMD package, its dimensions are 3.20mm L x 1.60mm W with a maximum height of 1.30mm. The viewing angle is 140°. This LED is commonly utilized in industrial automation, automotive lighting, and consumer electronics for indication purposes. Supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 570nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
