QTLP630CRTR
LED RED CLEAR 0805 SMDManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

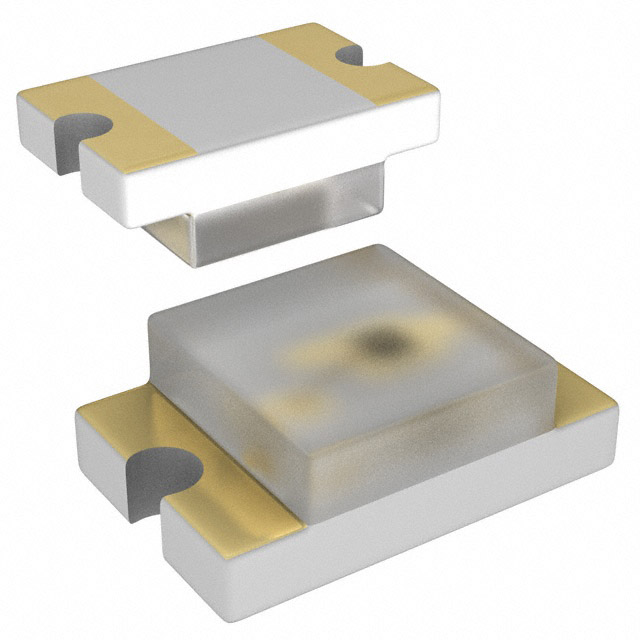

onsemi QTLP630CRTR is a red, clear lens, surface-mount LED with a dominant wavelength of 624nm and a peak wavelength of 630nm. This discrete component features a standard configuration and is housed in an 0805 (2012 Metric) package, measuring 2.00mm L x 1.25mm W with a maximum height of 1.20mm. The LED exhibits a forward voltage (Vf) of 2V at a test current of 20mA, producing a millicandela rating of 40mcd and a wide 140° viewing angle. The colorless, rectangular lens with a flat top ensures optimal light output and clarity. Supplied on tape and reel, the QTLP630CRTR is suited for applications in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | 0805 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
