MV8412
LED GREEN CLEAR T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

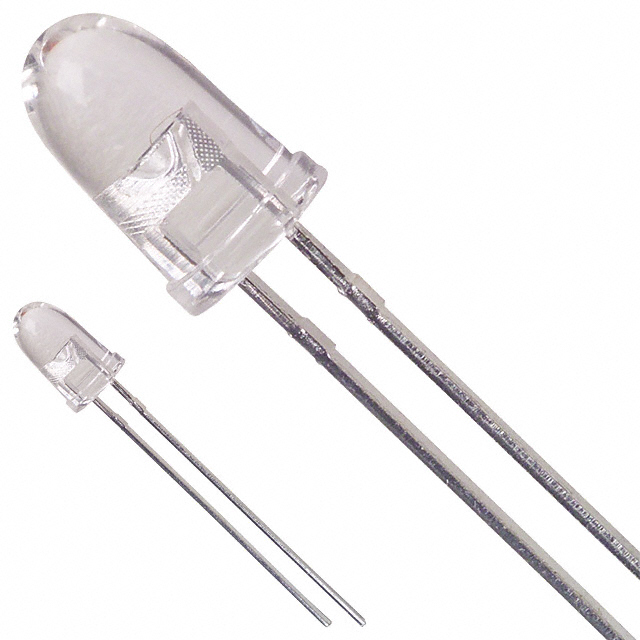

onsemi MV8412 is a Through Hole Green LED, featuring a clear, domed T-1 3/4 lens. This discrete indicator component operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a luminous intensity of 600mcd. The LED exhibits a narrow viewing angle of 12 degrees and a peak wavelength of 565nm, providing a distinct green light output. Designed for reliable indication in a variety of applications, it is suitable for use in industrial control systems, consumer electronics, and general equipment status monitoring. Packaged in Bulk for efficient integration into manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 12° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
