MV6951
LED RED DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

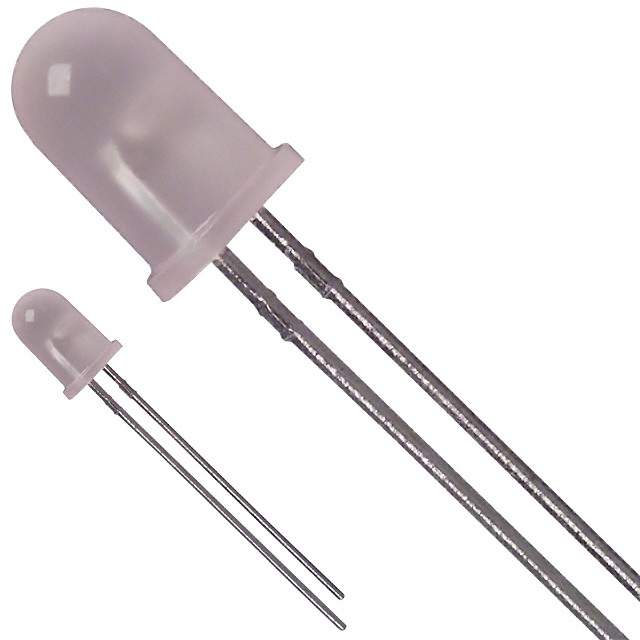

onsemi MV6951 is a red diffused LED, packaged in a T-1 3/4 through-hole radial configuration. This discrete indicator component operates with a typical forward voltage of 2.4V and a test current of 20mA, producing a luminous intensity of 12mcd. The diffused lens style with a domed top, measuring 5mm, ensures a wide viewing angle of 70 degrees. Its red diffused lens color is consistent with the component's red light emission. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication. The MV6951 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 650nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
