MV64521
LED GREEN CLEAR T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

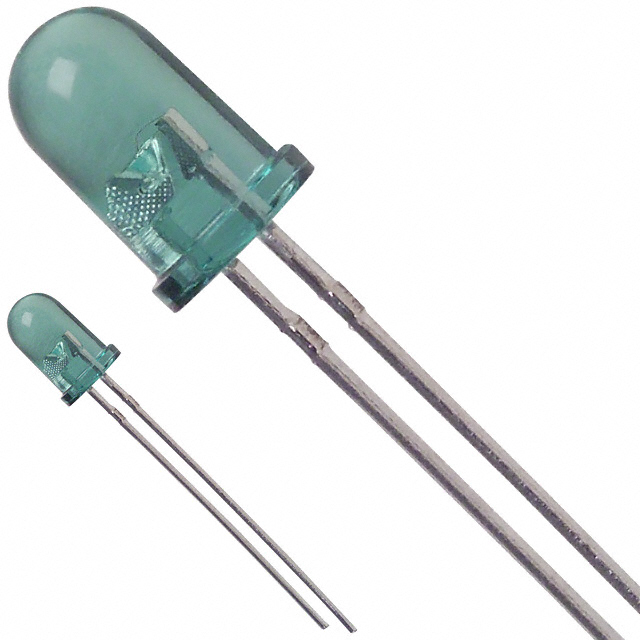

onsemi MV64521 is a Through Hole, Green LED Indication component with a standard configuration. This radial package, T-1 3/4, features a clear lens with a green lens color and a domed top, providing a 35° viewing angle. The forward voltage is typically 2.2V, with a test current of 20mA yielding a luminous intensity of 100mcd. The peak wavelength is 562nm. This component is suitable for industrial and commercial applications requiring reliable visual status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 35° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
