MV5752
LED RED CLEAR T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

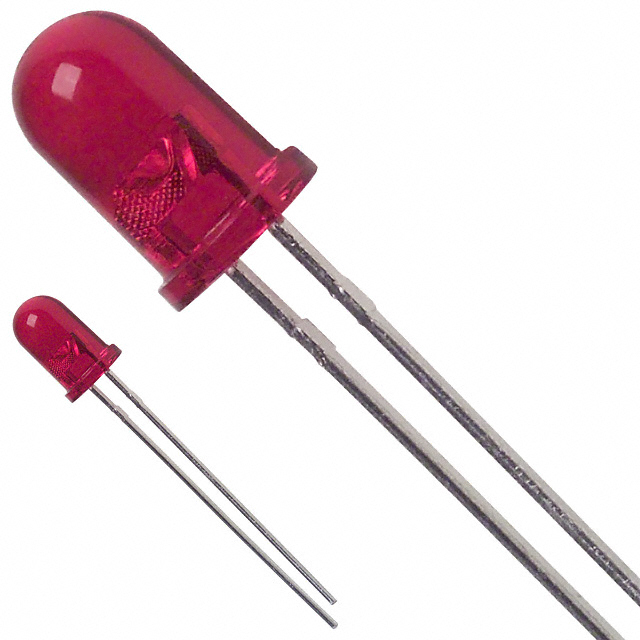

The onsemi MV5752 is a red, clear lens, T-1 3/4 package LED designed for through-hole mounting. This discrete component features a forward voltage of 2V (typical) at a test current of 20mA, producing a luminous intensity of 100mcd. With a peak wavelength of 635nm, it offers a 28° viewing angle and a domed top lens. Applications include industrial control systems and consumer electronics where reliable visual indication is critical. The MV5752 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 28° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
