MV57124A
LED RED DIFFUSED RECTANGULAR T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

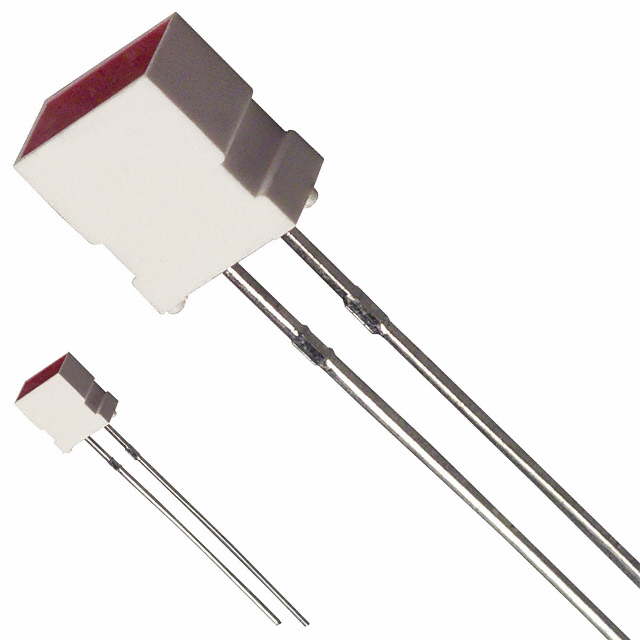

onsemi MV57124A is a red diffused rectangular through-hole LED designed for indication applications. This discrete component features a standard configuration with a forward voltage of 2V (typical) and a test current of 20mA, yielding a millicandela rating of 6mcd. The LED's lens is red, diffused, and rectangular with a flat top, measuring 5.71mm x 3.17mm. Its dimensions are 6.22mm in length and 3.68mm in width, with a maximum height of 7.11mm. The viewing angle is 100 degrees, and the peak wavelength is 635nm. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 6.22mm L x 3.68mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 7.11mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.71mm x 3.17mm |
