MV57123
LED RED DIFF RECT 2MMX5MM T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

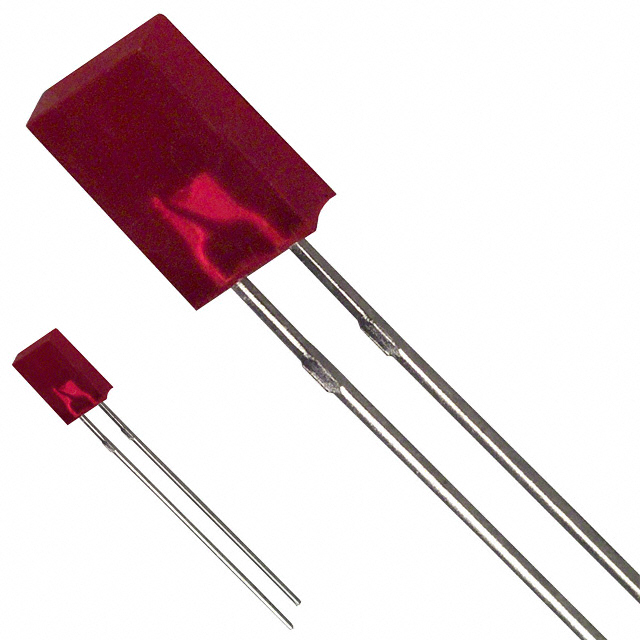

onsemi MV57123 is a red, diffused, rectangular LED with a 2mm x 5mm lens, designed for through-hole mounting. This discrete indicator component operates with a typical forward voltage of 2V and a test current of 20mA, producing a luminous intensity of 4mcd. The LED features a 100° viewing angle and a peak wavelength of 635nm. Packaged for bulk distribution, its radial package is suitable for applications in industrial automation, consumer electronics, and medical equipment where reliable visual feedback is essential. The component's 7.80mm maximum height and 5.20mm x 2.20mm footprint ensure compatibility with standard PCB layouts.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.20mm L x 2.20mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 4mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular 2mmx5mm |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
