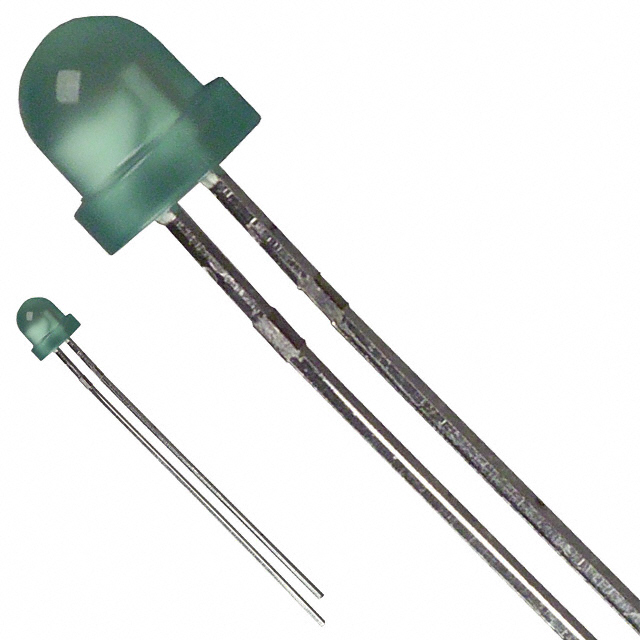

MV5477C
LED GREEN DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More
onsemi's MV5477C is a green diffused LED, a discrete through-hole component designed for reliable visual indication. This T-1 package with a radial pin configuration features a 2.2V typical forward voltage and a 20mA test current, delivering a 7mcd luminous intensity. Its 140° wide viewing angle and diffused lens provide excellent off-axis visibility and uniform light distribution. The component's peak wavelength is 565nm. The MV5477C finds application in various industrial and consumer electronics, including control panels, status indicators, and general lighting systems where clear, consistent illumination is paramount. Packaged in bulk, it offers a practical solution for high-volume manufacturing needs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
