MV5474C
LED GREEN DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

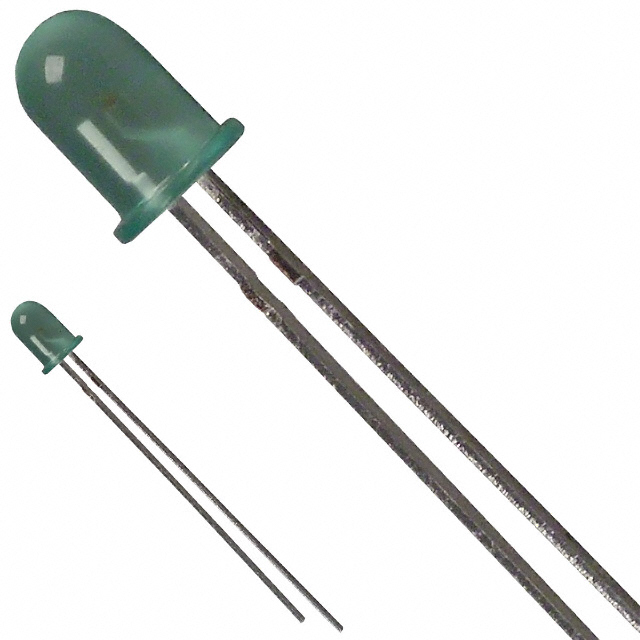

onsemi MV5474C is a green, diffused, through-hole mounted LED designed for general indication applications. Featuring a T-1 package size and a radial lead configuration, this component operates with a typical forward voltage of 2.2V and a test current of 20mA, yielding a luminous intensity of 9mcd. The diffused lens with a domed top provides a wide 90° viewing angle, suitable for status indicators in industrial control systems, consumer electronics, and medical equipment. This device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 9mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 5.84mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
