MV5454A
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

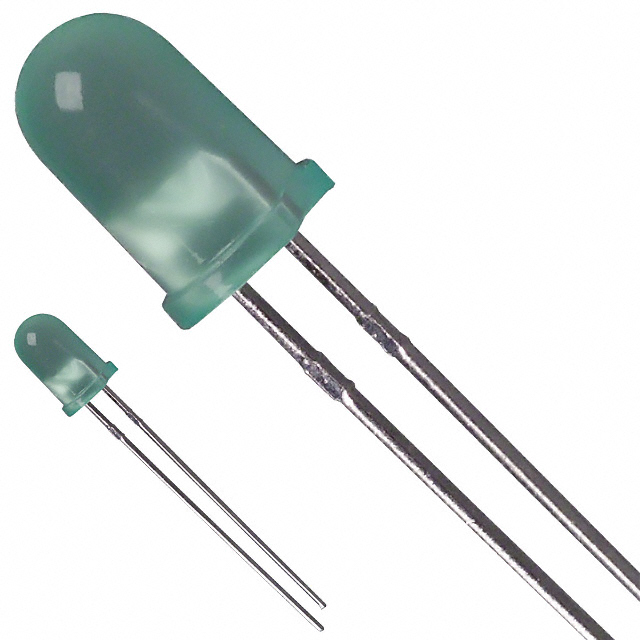

onsemi Green Diffused T-1 3/4 Through-Hole LED, part number MV5454A, offers a 562nm peak wavelength and a typical forward voltage of 2.2V at 20mA. This discrete LED provides a diffused light output with a 30mcd luminous intensity and a viewing angle of 24°. The radial package, sized as T-1 3/4, is suitable for through-hole mounting. Commonly utilized in industrial automation, medical devices, and consumer electronics for status indication and general lighting applications. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 24° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
