MV5453
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

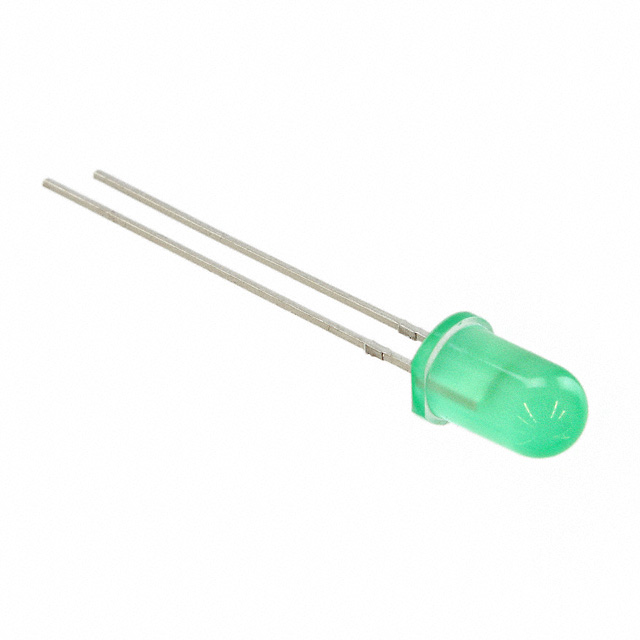

onsemi MV5453 is a green diffused LED with a T-1 3/4 package, designed for through-hole mounting. This discrete LED component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a luminous intensity of 20mcd. The diffused lens offers a wide 75° viewing angle, ensuring broad visibility. Its peak wavelength is 562nm. Commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication, the MV5453 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 75° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
