MV54124A
LED GRN DIFFUSED RECTANGULAR T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

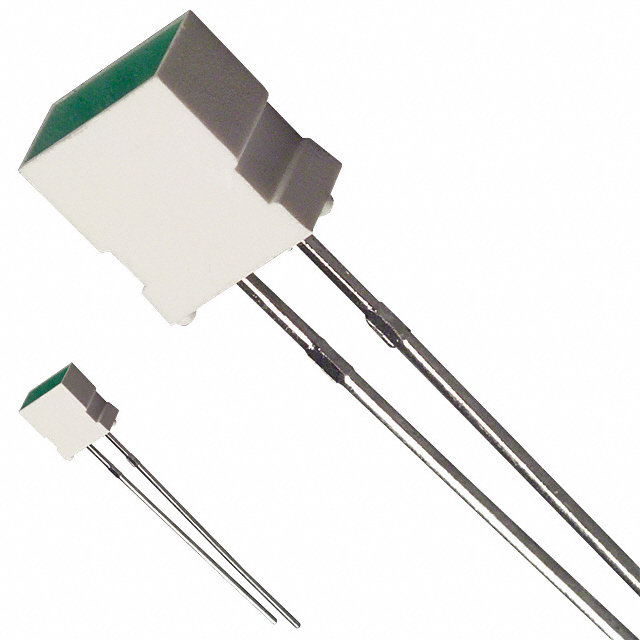

The onsemi MV54124A is a through-hole mounted, green diffused rectangular LED designed for discrete indication applications. Exhibiting a typical forward voltage of 2.2V and a peak wavelength of 562nm, this component is rated for 20mA test current, providing a millicandela rating of 6mcd. The diffused lens, measuring 5.71mm x 3.17mm, offers a wide 100° viewing angle, ensuring broad visibility. Its overall dimensions are 6.22mm L x 3.68mm W, with a maximum height of 7.11mm. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. Packaged in bulk, the MV54124A features a standard configuration with a green lens.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 6.22mm L x 3.68mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 7.11mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.71mm x 3.17mm |
