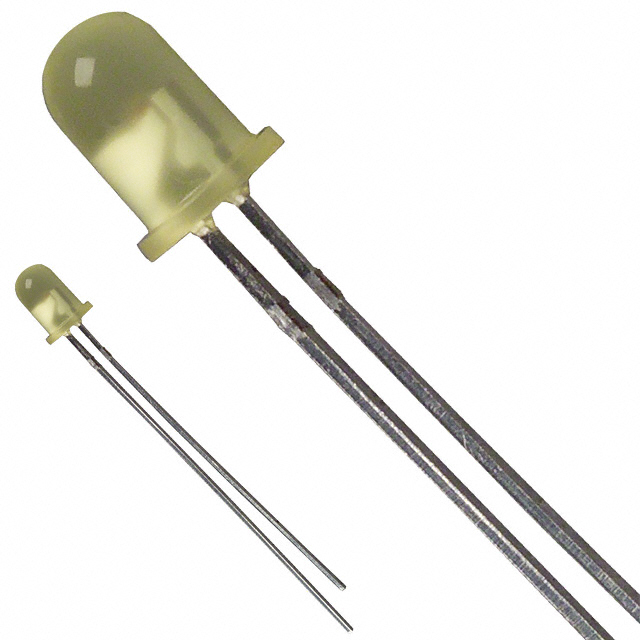

MV5374C
LED YELLOW DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More
This onsemi discrete LED, part number MV5374C, offers a yellow diffused light output with a peak wavelength of 585nm. Designed for through-hole mounting, it features a T-1 package with a radial lead form. The component operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a luminous intensity of 9mcd. The diffused, domed top lens ensures a wide 90° viewing angle, making it suitable for various indicator applications across industrial control and consumer electronics. Supplied in bulk packaging, this component is a reliable choice for board-level visual feedback.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 9mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 5.83mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
