MV53124A
LED YL DIFFUSED RECTANGULAR T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

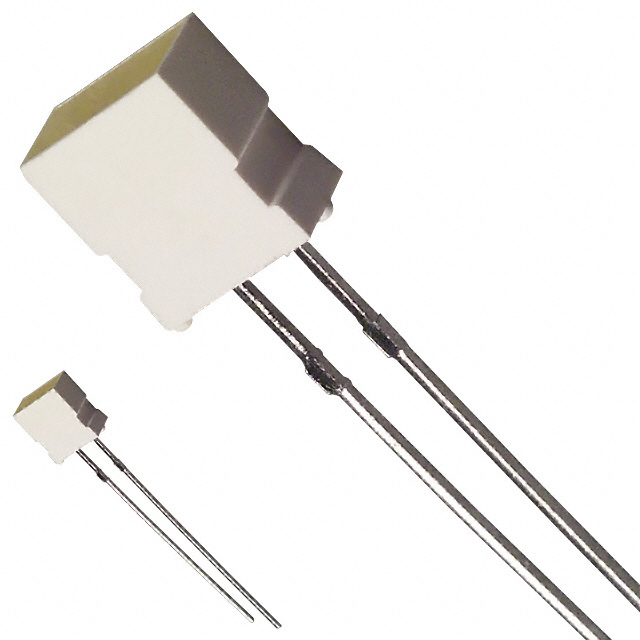

onsemi MV53124A is a yellow diffused rectangular LED designed for through-hole mounting. This discrete indicator component features a 2V forward voltage (Vf) at a test current of 20mA, delivering a typical luminous intensity of 6mcd. The diffused lens measures 5.71mm x 3.17mm, with the overall component dimensions being 6.22mm L x 3.68mm W and a maximum height of 7.11mm. The LED exhibits a wide viewing angle of 100 degrees. Its peak wavelength is 585nm. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and visual feedback. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | 6.22mm L x 3.68mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 7.11mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.71mm x 3.17mm |
