MV50640
LED RED DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

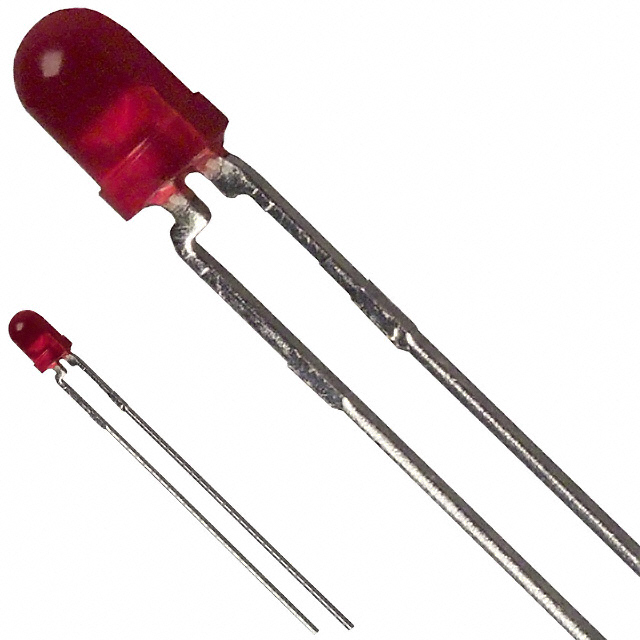

The onsemi MV50640 is a red diffused T-1 through-hole LED designed for general indication applications. This discrete component features a standard configuration with a forward voltage of 1.6V typical at 20mA test current. The diffused lens, with a 3mm (T-1) diameter, provides a wide 90° viewing angle, ensuring broad visibility. It emits a dominant wavelength of 660nm, producing a luminous intensity of 1.5mcd. The radial package is suitable for through-hole mounting, with a maximum height of 6.30mm. This component is commonly employed in industrial control systems, consumer electronics, and automotive lighting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
