MV5053
LED RED DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

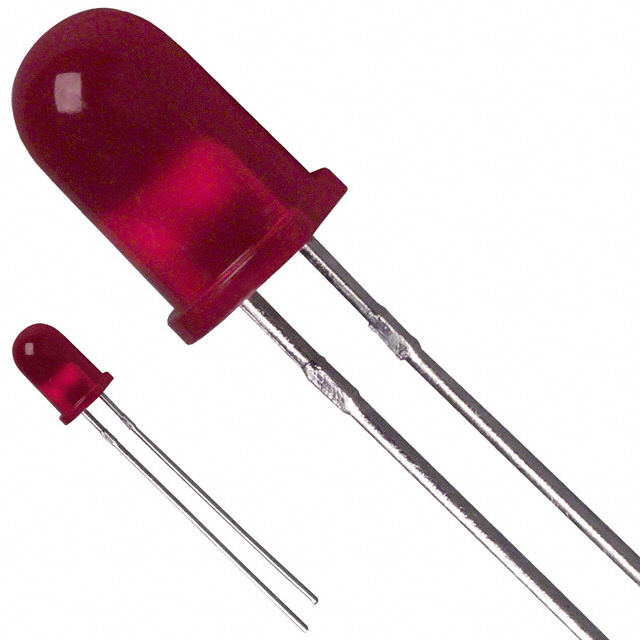

The onsemi MV5053 is a red diffused LED, a discrete component designed for through-hole mounting. This T-1 3/4 package features a round, domed top lens with a diffused finish, providing a wide 80° viewing angle. With a typical forward voltage of 2.2V and operating at 20mA test current, it emits light at a peak wavelength of 660nm, yielding a millicandela rating of 0.5mcd. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 80° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
