MV50154
LED RED DIFF BULLET T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

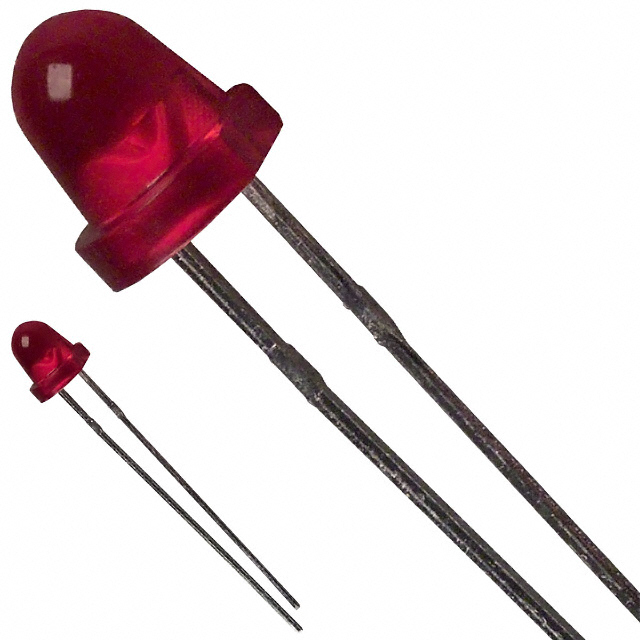

The onsemi MV50154 is a red, diffused, T-1 3/4 through-hole LED with a bullet profile. This discrete indicator component operates with a typical forward voltage of 1.6V at 10mA test current, producing a luminous intensity of 1.5mcd. Featuring a 50° viewing angle and a 660nm peak wavelength, the MV50154 is suitable for general indication purposes across various industrial and consumer electronics applications. The radial package offers a 5mm diameter and a maximum height of 6.35mm. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | 50° |
| Height (Max) | 6.35mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Bullet Profile T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
