MV3450
LED GREEN CLEAR T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

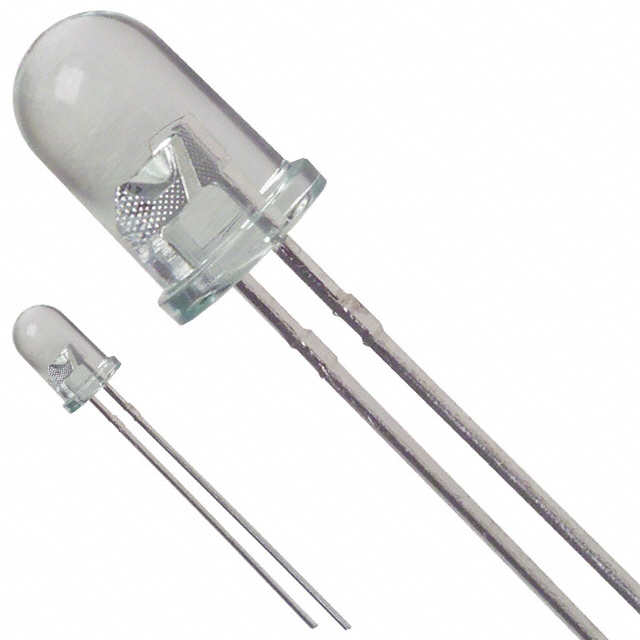

onsemi MV3450 is a through-hole mounted, green LED with a clear, domed top lens. This radial package component is designed for general indication applications, featuring a typical forward voltage of 2.2V and a forward current of 20mA. The MV3450 offers a luminous intensity of 150mcd and a dominant wavelength of 565nm, with a narrow viewing angle of 24 degrees. Its T-1 3/4 package size and radial mounting are suitable for various industrial and consumer electronics, including control panels, status indicators, and automotive applications. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 24° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
