HLMPM501
LED GREEN 4MM T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

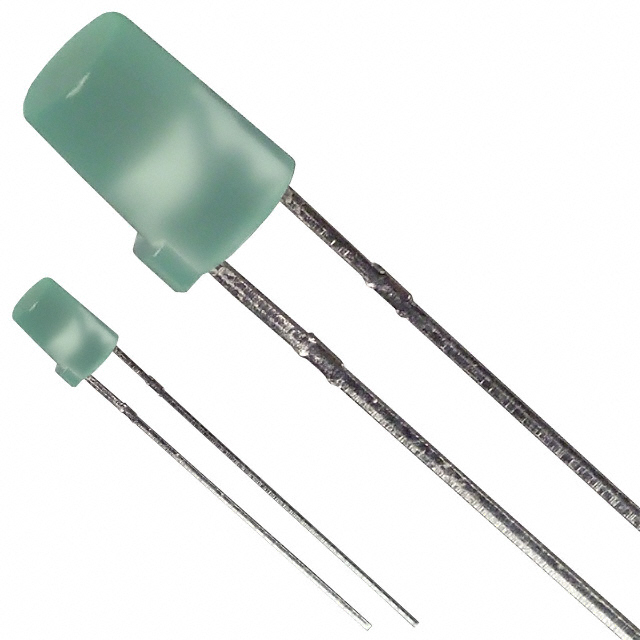

The onsemi HLMPM501 is a through-hole mounted green LED designed for discrete indication applications. Featuring a 4mm radial package with a round, flat-top lens, this component offers a typical forward voltage of 2.3V and a test current of 20mA. It provides a luminous intensity of 10mcd with a wide viewing angle of 135 degrees. The peak wavelength is 565nm. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems where reliable visual status indication is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 135° |
| Height (Max) | 6.24mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4mm FLAT TOP |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 3.99mm Dia |
