HLMPM201
LED RED 4MM ROUND T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

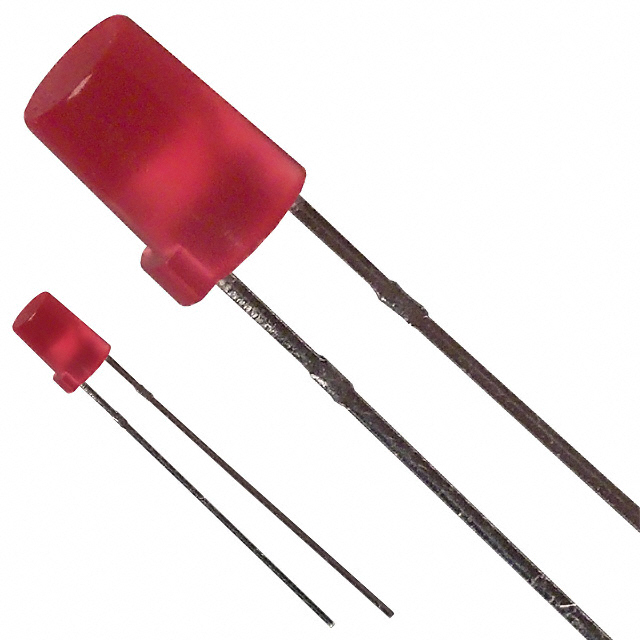

onsemi's HLMPM201 is a discrete red LED with a 4mm radial through-hole package. This component features a forward voltage of 2.2V (typical) and operates at a test current of 20mA, yielding a luminous intensity of 7mcd. The round lens with a flat top has a diameter of 3.99mm and a viewing angle of 135 degrees. The peak wavelength is 635nm. This LED is suitable for general indication applications across various electronic systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 135° |
| Height (Max) | 6.24mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4mm FLAT TOP |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 3.99mm Dia |
