HLMPK105
LED RED CLEAR T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

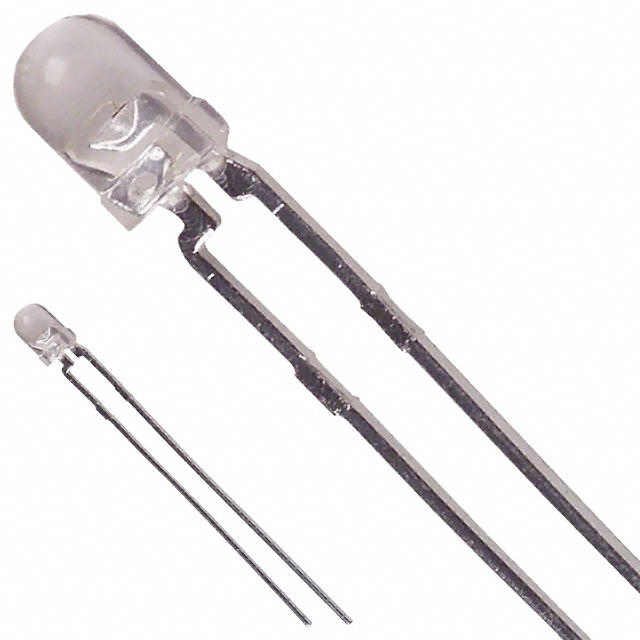

The onsemi HLMPK105 is a discrete Red LED designed for through-hole mounting, featuring a clear lens with a domed top. This T-1 package component operates with a typical forward voltage of 1.8V and a test current of 20mA, producing a luminous intensity of 65mcd. Its 45° viewing angle and 660nm peak wavelength make it suitable for various visual indication applications across industrial, automotive, and consumer electronics sectors. The radial package configuration ensures straightforward integration into PCB designs. Supplied in bulk packaging, the HLMPK105 offers reliable performance for general illumination and status signaling.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 65mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
