HLMPD150A
LED RED DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

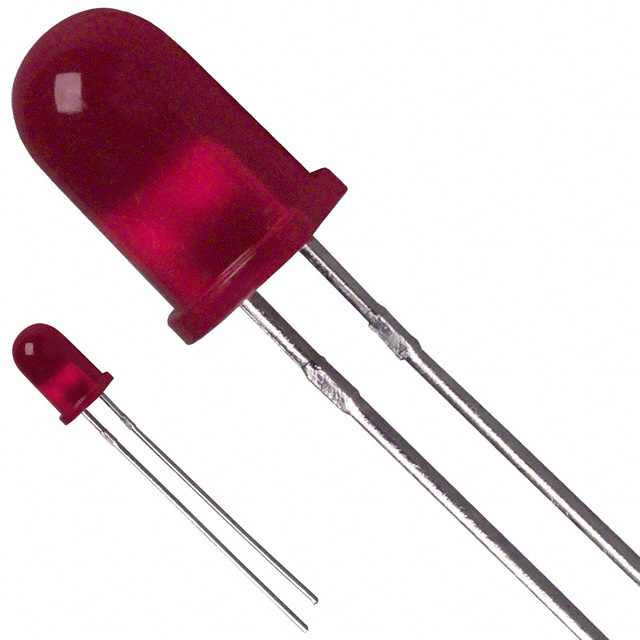

onsemi HLMPD150A is a red diffused LED with a T-1 3/4 package, designed for through-hole mounting. This discrete indicator LED features a typical forward voltage of 1.6V and a peak wavelength of 660nm. Its diffused lens style and 65° viewing angle provide clear visual indication. The component is rated for 1mA test current and offers a millicandela rating of 3mcd. This radial packaged LED is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Lens Color | Red |
| Current - Test | 1mA |
| Viewing Angle | 65° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
