HLMP3850A
LED YELLOW CLEAR T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

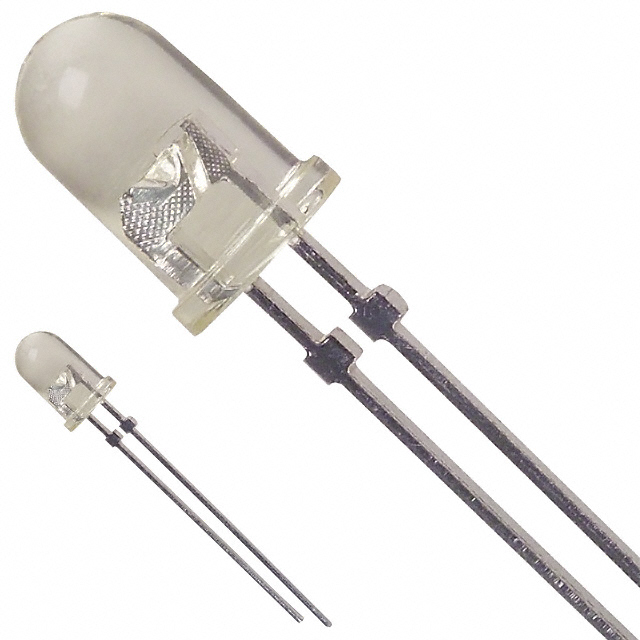

onsemi HLMP3850A is a Through Hole Yellow LED with a Clear, Domed Top lens measuring 5mm (T-1 3/4). This discrete LED indication component features a typical forward voltage of 2.2V and is tested at 20mA, achieving a luminous intensity of 150mcd. The peak wavelength is 585nm, and it offers a viewing angle of 24°. This component is suitable for various industrial applications, including instrumentation and control panels. The device is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 24° |
| Height (Max) | 12.19mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
