HLMP3300
LED RED DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

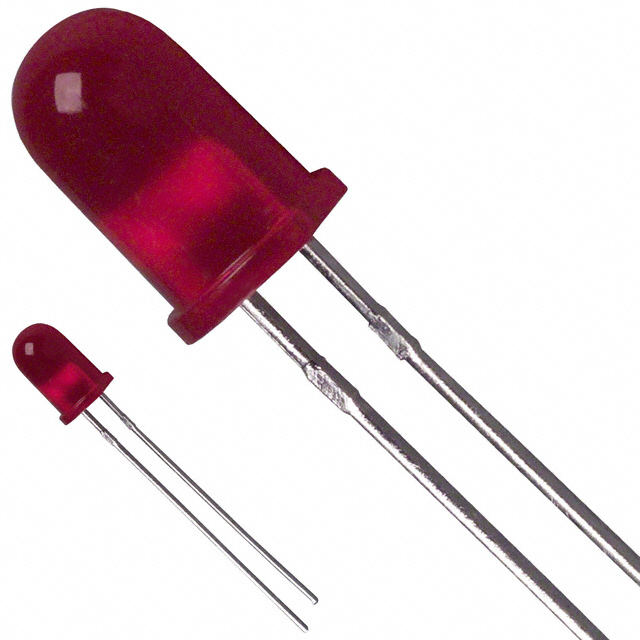

onsemi's HLMP3300 is a red diffused LED, T-1 3/4 package, designed for through-hole mounting. This discrete indicator features a standard configuration with a forward voltage of 2.2V (typical) at a test current of 10mA. The diffused lens, with a 5mm diameter, provides a wide viewing angle of 65 degrees, ensuring consistent illumination. The red lens color enhances visibility, and the LED emits at a peak wavelength of 635nm, delivering 3.5 millicandela of luminous intensity under specified test conditions. Commonly utilized in industrial control, consumer electronics, and medical equipment for status indication, the HLMP3300 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | 65° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
