HLMP1700
LED RED DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

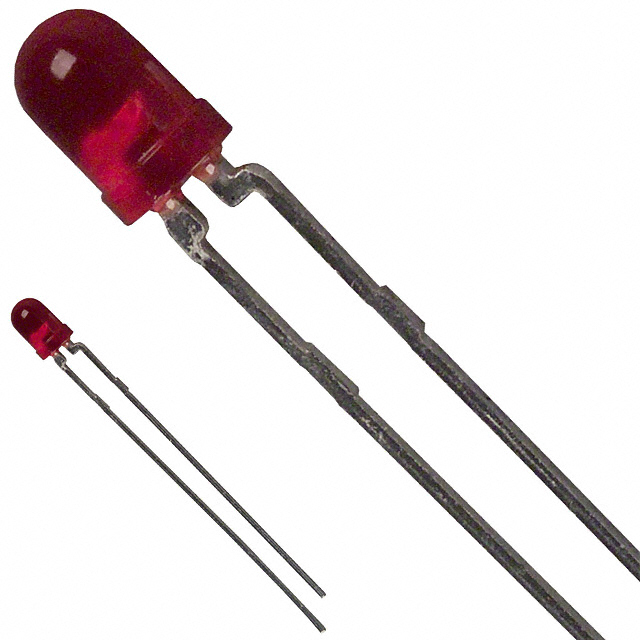

onsemi HLMP1700 is a red diffused T-1 through-hole LED designed for reliable indication. This discrete component operates with a typical forward voltage of 1.8V and a test current of 2mA, producing a luminous intensity of 2mcd. The round, diffused lens with a domed top, measuring 3mm (T-1), ensures a wide viewing angle of 50°. The component is supplied in bulk packaging with a radial package configuration. Its robust design makes it suitable for general indication purposes across various industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 2mA |
| Viewing Angle | 50° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
