HLMP1540
LED GREEN CLEAR T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

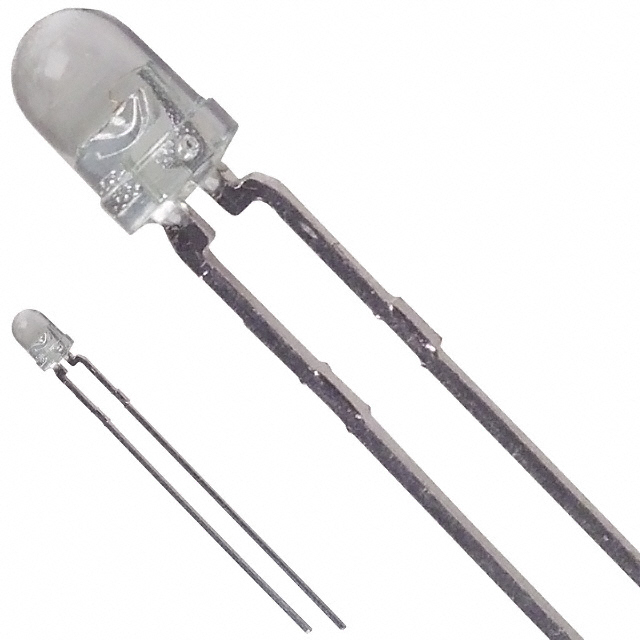

onsemi HLMP1540 is a Through Hole Green LED Indication component. This discrete LED features a clear, green-tinted lens with a 3mm (T-1) diameter and a domed top style, providing a 45° viewing angle. It is rated for a typical forward voltage of 2.2V and a test current of 20mA, delivering a luminous intensity of 60mcd. The component is supplied in Bulk packaging and is suitable for applications requiring reliable visual feedback. Industries such as industrial automation, consumer electronics, and telecommunications commonly utilize these types of discrete LEDs for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
