HLMP1523
LED GREEN DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

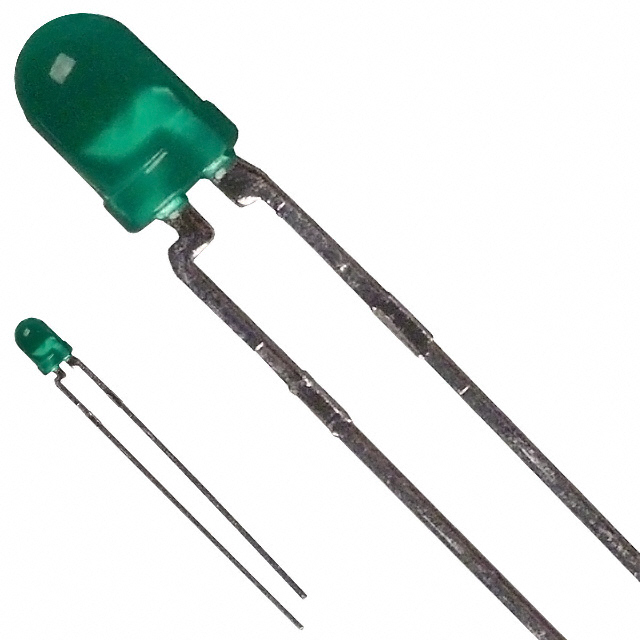

The onsemi HLMP1523 is a Through Hole Green Diffused T-1 LED, offering a typical forward voltage of 2.2V. This discrete LED component features a 20mA test current, producing a millicandela rating of 10mcd. Its round, domed top lens is green and diffused, with a peak wavelength of 562nm. This component is commonly utilized in industrial control, medical equipment, and consumer electronics for status indication. The HLMP1523 is supplied in Bulk packaging, with a radial package type (T-1).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
