HLMP1503
LED GREEN DIFFUSED T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

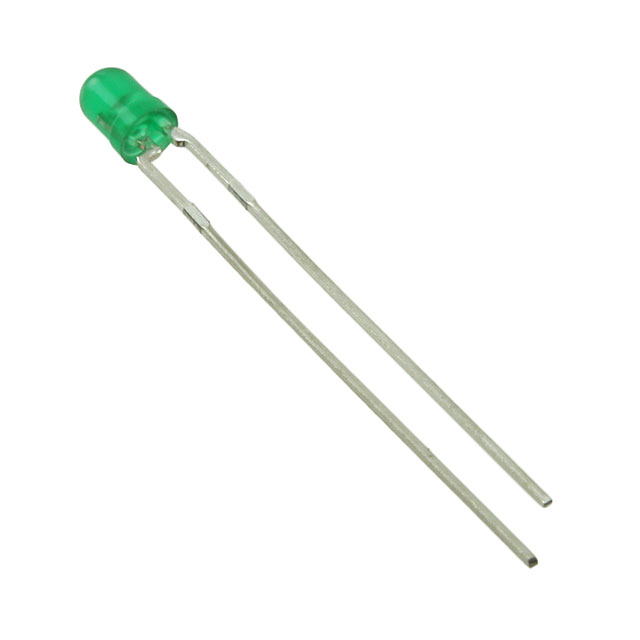

onsemi HLMP1503 is a green diffused T-1 through-hole LED designed for general indication applications. This radial package component features a 2.2V typical forward voltage and a 562nm peak wavelength, delivering 5mcd luminous intensity at a 20mA forward current. The diffused lens and 90° viewing angle ensure broad visibility. Commonly utilized in industrial automation, consumer electronics, and automotive systems for status indication. The T-1 package is suitable for standard PCB mounting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 562nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
