HLMP1440
LED YELLOW CLEAR T-1 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

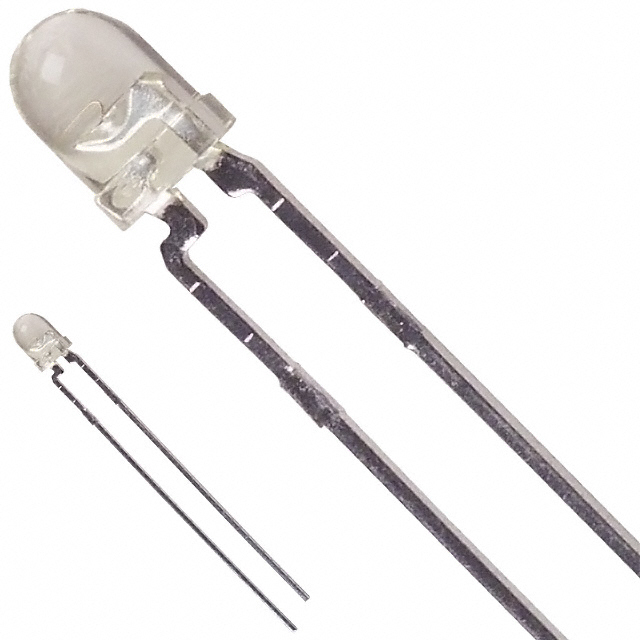

onsemi HLMP1440 is a through-hole mounted yellow LED, T-1 package size, designed for general indication. This discrete LED features a clear lens with a domed top and a radial package configuration. It operates with a typical forward voltage of 2.2V and a test current of 10mA, producing a luminous intensity of 60mcd. The dominant wavelength is 585nm, and it offers a viewing angle of 45 degrees. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. It is available in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 45° |
| Height (Max) | 6.30mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
