HLMP0504
LED GRN DIFFUSED RECTANGULAR T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

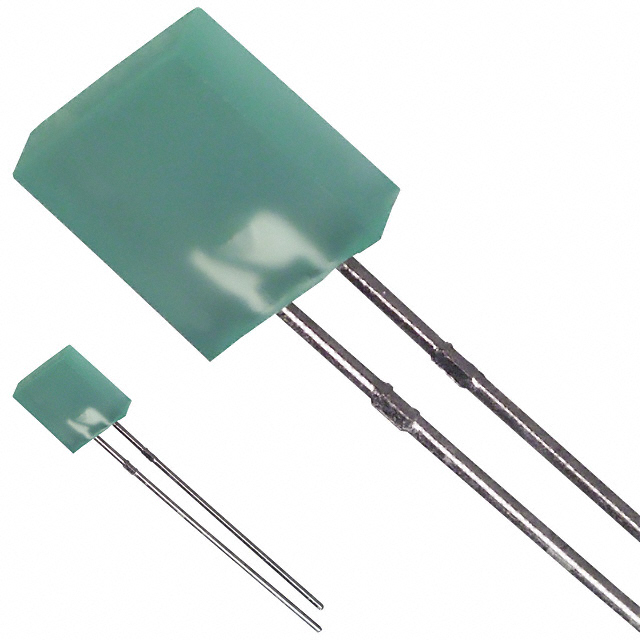

onsemi HLMP0504 is a green, diffused, rectangular LED designed for through-hole mounting. This discrete indicator component offers a typical forward voltage of 2.3V and operates at a test current of 20mA, producing a millicandela rating of 5mcd. The lens, measuring 7.24mm in length and 2.42mm in width, is green and diffused for widespread illumination with a viewing angle of 100°. The component's overall height is a maximum of 8.00mm. This device is suitable for various industrial applications requiring reliable visual feedback, including industrial automation and control systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 7.24mm L x 2.42mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 8.00mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.24mm x 2.42mm |
