HLMP0300
LED RED DIFFUSED RECTANGULAR T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

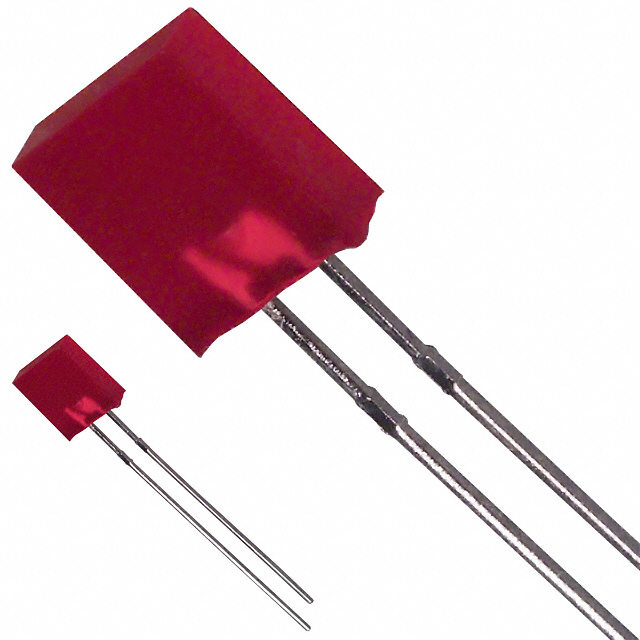

onsemi HLMP0300 is a red diffused rectangular LED designed for through-hole mounting. This discrete indicator component features a standard configuration with a forward voltage of 2.1V (typical) at a test current of 20mA. The lens color is red, with a diffused transparency and a rectangular shape measuring 7.24mm L x 2.42mm W, and a maximum height of 8.00mm. It offers a viewing angle of 100° and a millicandela rating of 2.5mcd. The peak wavelength is 635nm. Commonly utilized in industrial automation and consumer electronics for status indication. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 7.24mm L x 2.42mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 8.00mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.24mm x 2.42mm |
