FLV110
LED RED DIFFUSED T-1 3/4 T/HManufacturer: onsemi
Categories: LED Indication - Discrete
Quality Control: Learn More

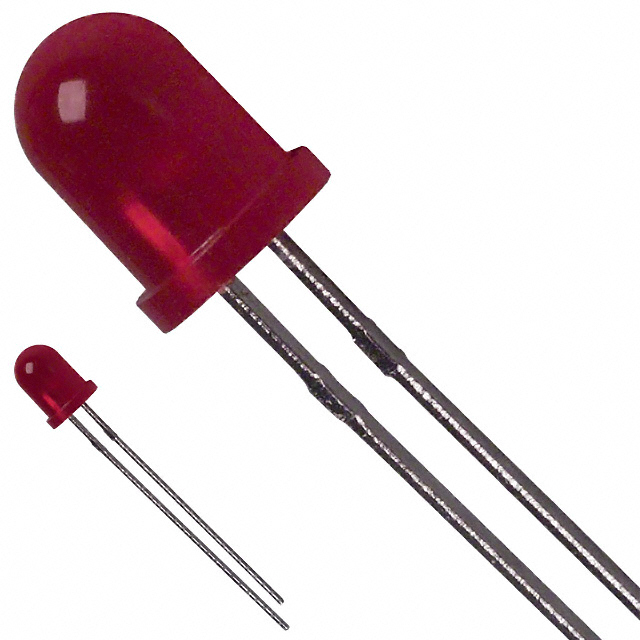

onsemi FLV110 is a red diffused, through-hole LED designed for discrete indication. This T-1 3/4 package features a round, domed lens with a 70° viewing angle and a 1.6V typical forward voltage. The component delivers 3mcd of luminous intensity at a 20mA test current, with a peak wavelength of 660nm. Its diffused lens ensures uniform light output for clear visual feedback. This component is commonly employed in industrial automation, consumer electronics, and medical equipment for status indication. The FLV110 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 7.49mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
