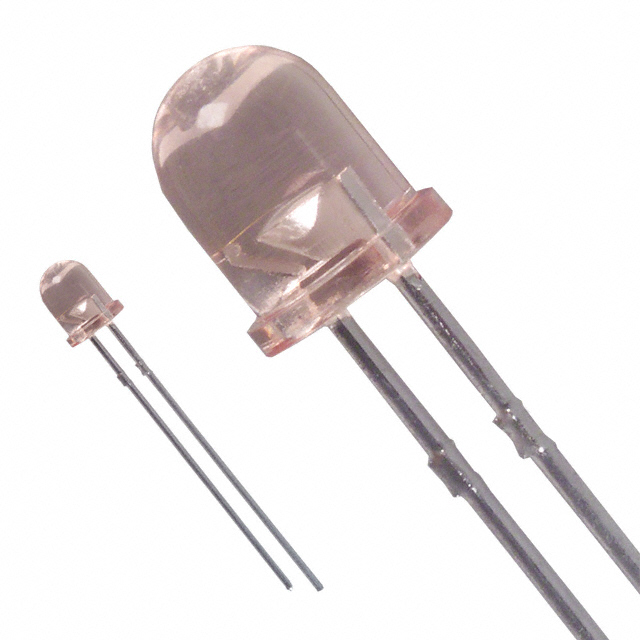

QED522
EMITTER IR 880NM 100MA TO-46Manufacturer: onsemi
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The onsemi QED522 is an infrared (IR) emitter designed for demanding applications. This TO-46-2 packaged component operates at a wavelength of 880nm, offering a typical forward voltage (Vf) of 1.8V and a maximum DC forward current (If) of 100mA. Its radiant intensity (Ie) reaches a minimum of 20mW/sr at 100mA, with a narrow 20° viewing angle. Engineered for through-hole mounting and a top-view orientation, the QED522 is suitable for operation across a wide temperature range from -40°C to 100°C. This component finds utility in industries such as industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | TO-46-2 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA |
| Packaging |
