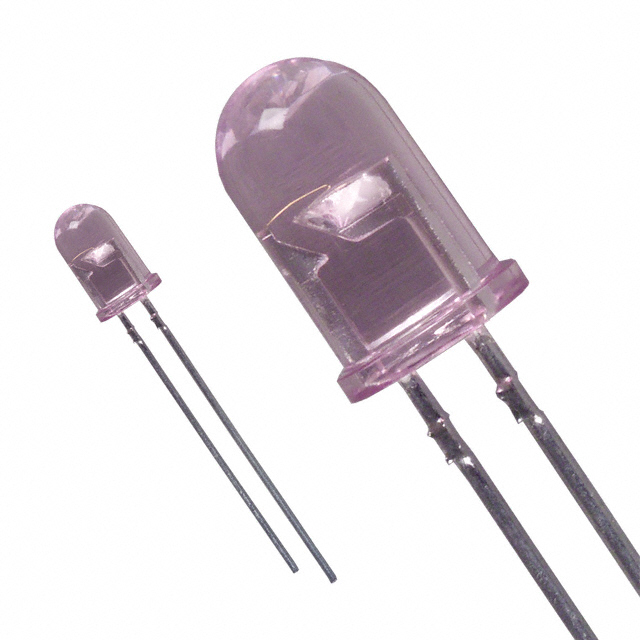

QED222
EMITTER IR 880NM 100MA RADIALManufacturer: onsemi
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The onsemi QED222 is an infrared (IR) emitter designed for applications requiring efficient near-infrared light output. This through-hole component features a 880nm peak wavelength, delivering a radiant intensity of 16mW/sr at a forward current of 100mA. Its forward voltage is typically 1.7V. The QED222 is housed in a standard 5mm diameter (T 1 3/4) radial package, suitable for automated assembly processes. With a 30° viewing angle and an operating temperature range of -40°C to 100°C, this emitter is well-suited for use in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 16mW/sr @ 100mA |
