QEC112
EMITTER IR 940NM 50MA RADIALManufacturer: onsemi
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

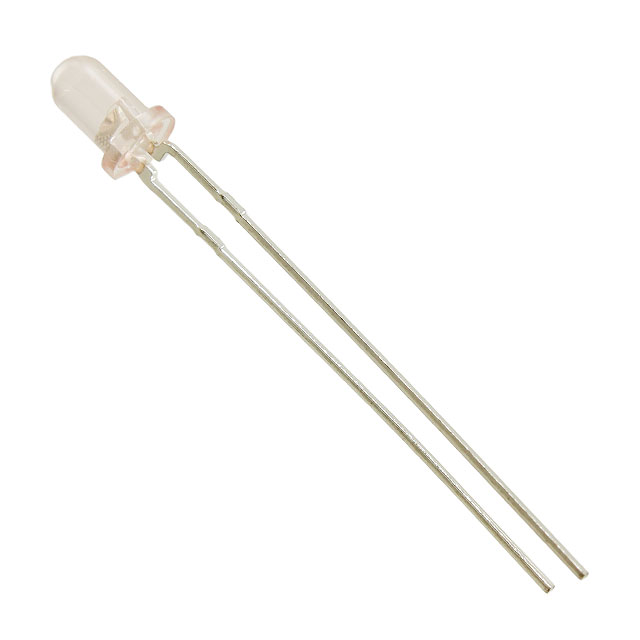

onsemi QEC112 is a through-hole mounted infrared emitter with a 940nm wavelength. This component features a 50mA DC forward current rating and a typical forward voltage of 1.5V. It delivers a radiant intensity of 6mW/sr at 100mA, with a narrow 18° viewing angle. The emitter is housed in a 3mm diameter (T-1) radial package, designed for top-view orientation. Operating across a temperature range of -40°C to 100°C (TA), the QEC112 is suitable for applications in industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 3mm Dia (T-1) |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 18° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 6mW/sr @ 100mA |
