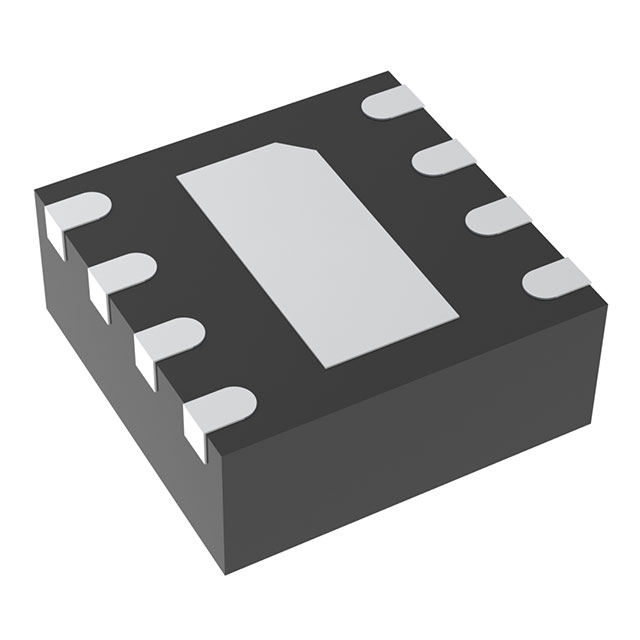

NUD4301MNT1G
IC LED DRVR LINEAR PWM 30MA 8DFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi NUD4301MNT1G is a dual-output, linear LED driver IC. This device supports both analog and Pulse Width Modulation (PWM) dimming for precise control of LED brightness. Each output channel is capable of delivering up to 30mA. Featuring integrated switches, this component simplifies design by reducing external component count. The NUD4301MNT1G is supplied in an 8-DFN (2x2) package, suitable for surface mount applications. Its robust operating temperature range of -40°C to 150°C (TJ) makes it appropriate for demanding environments. This component finds application in areas such as LED backlighting.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 8-DFN (2x2) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | - |
| Voltage - Supply (Max) | - |
